SINCE 2020 · SUZHOU · VACUUM MOTORS ONLY

We make
the motor inside the vacuum

High-speed BLDC fan motors and AC universal motors, 120–1400 W, 14.4–240 V. OEM, custom build to drawing or sample — from 1 pc in 7–10 days.

View products Download spec sheet

120–1400W POWER RANGE

14.4–240V VOLTAGE RANGE

9patents UTILITY PATENTS

7–10days SAMPLE LEAD TIME

Product line

Two series, covering what vacuum makers need

A high-speed BLDC fan motor for cordless machines, and an AC universal motor for corded, wet & dry and professional cleaning equipment.

BLDC · CORDLESS

BLDC-65G / 85G

High-speed BLDC fan, 14.4 / 18 / 21.6 V, up to 85 W suction.

Power120 / 160 / 240 W
Suction50 / 65 / 85 W
Vacuum15–25 kPa
InsulationClass E

AC · CORDED

V1J-PT / PA / PE

AC universal motor, 100–240 V, 600–1400 W, three fan geometries.

Power600–1400 W
Vacuum17–28 kPa
Airflow32–50 L/s
InsulationClass E / F

AC · FLOOR CARE

V3J-P

Compact AC motor, 550–900 W, tuned for floor washer water pick-up.

Power550–900 W
Vacuum14–22 kPa
Airflow29–36 L/s
InsulationClass E / F

Structure

The structure decides life, noise and feel

BLDC uses an outer stator with a permanent-magnet rotor — no brushes, no wear. The AC motor uses two-pole series excitation for high starting torque at low cost.

12 slots / 8 poles: low cogging, smooth speed, lower vibration and noise.
Balanced rotor + preloaded bearing: no shake, no rattle after long runs.
Double-impregnated stator: stable insulation in humid, dusty environments.
Shaft, flange, impeller, lead wire: all built to your drawing.

See full specifications

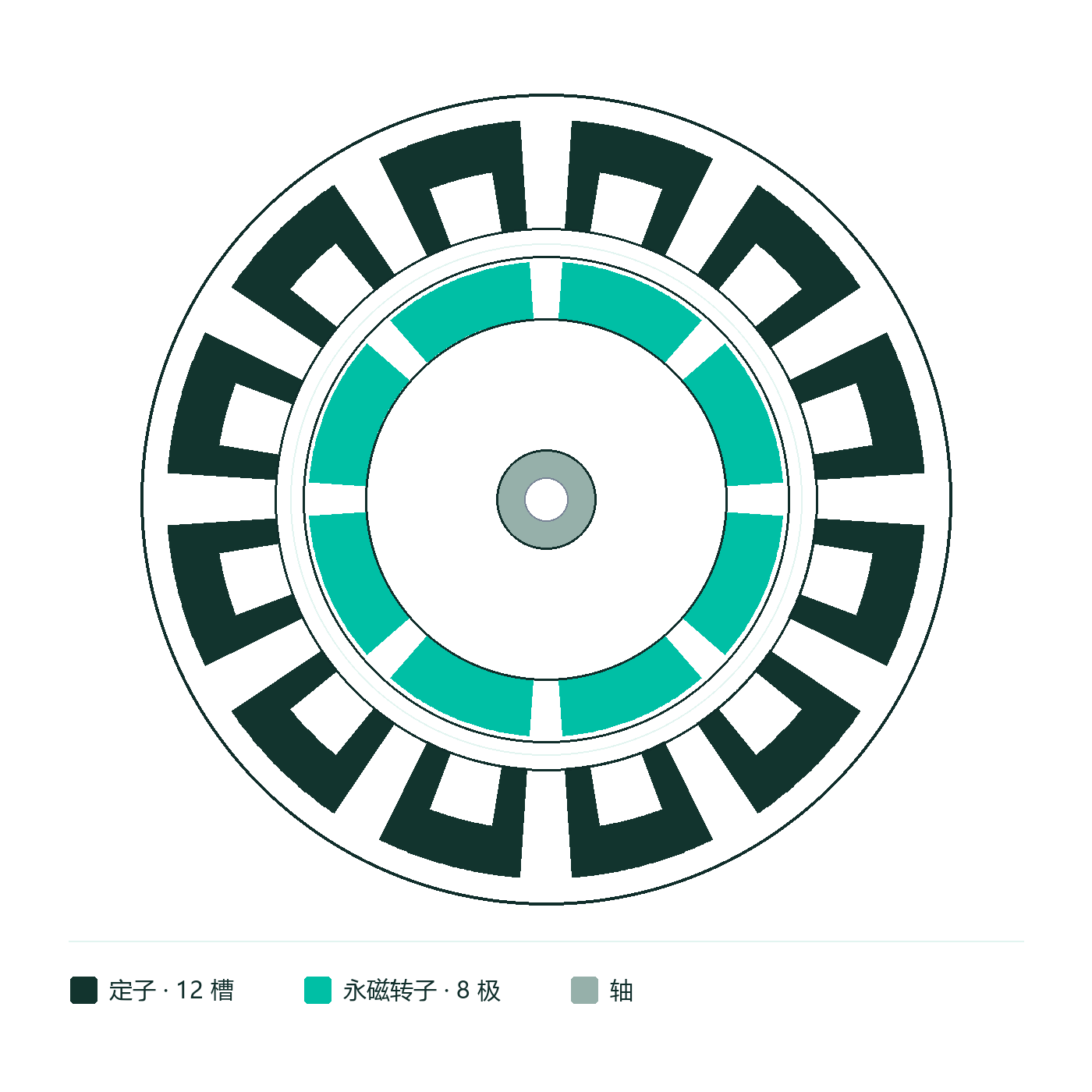

BLDC 高速无刷风机剖面图 — BLDC fan motor — 12-slot stator, 8-pole PM rotor

How we work

From one enquiry to volume delivery

Four steps, each with a clear deliverable and date — no chasing for updates.

STEP 01

Enquiry

Machine type, target vacuum, airflow, power, battery voltage. Same-day reply with a model and sample price.

STEP 02

Prototype

From 1 pc in 7–10 days, to drawing or sample, with measured data on every unit.

STEP 03

Approval & pilot

After sample approval, a pilot run — with the certification route (CE / RoHS / UL) fixed before volume.

STEP 04

Volume

500 pcs per model, 25–30 days. 100% end-of-line test, traceable by lot.

Applications

One motor for each kind of machine

Not sure which one fits? Send us target vacuum, airflow, input power and battery voltage — we will recommend a model and quote a sample.

Cordless stick & handheld

18 V or 21.6 V platform, the highest suction-to-weight ratio.

BLDC-65G / 85G

Corded canister & wet-dry

600–1400 W, up to 28 kPa; choose PA for maximum airflow.
